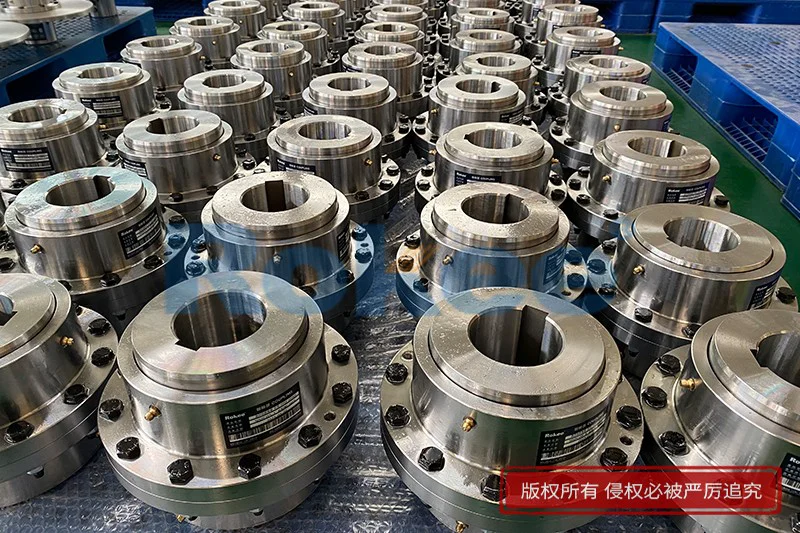

Alignment Range Of Drum Gear Coupling

The alignment range of the drum gear coupling includes the allowable values of axial error and radial error, which need to be determined according to the specific model and usage conditions. During installation and use, strict alignment requirements should be followed to ensure the normal operation and extended service life of the coupling.

The alignment range of the drum gear coupling mainly involves the allowable values of axial and radial errors, which are crucial for ensuring the normal operation and extending the service life of the coupling.

The axial error between the two shafts of the drum tooth coupling needs to be controlled within a certain range during installation. Generally speaking, the allowable value of axial error is relatively small, usually requiring less than 0.04mm to ensure stable transmission of the coupling and reduce wear.

In addition to axial error, radial error is also a key factor affecting the performance of couplings. The allowable value of radial error is usually greater than axial error, but it also needs to be controlled within a reasonable range. For drum gear couplings, the allowable radial error generally does not exceed 0.08mm. This range ensures that the coupling can maintain stability under radial loads and reduce vibration and noise caused by excessive radial deviation.

In addition to the allowable values of axial and radial errors, the alignment of drum toothed couplings also needs to pay attention to the following points:

1. Lubrication requirements: For drum gear couplings that require lubrication, the nozzle of the lubricating oil must be aligned to ensure sufficient lubrication of the tooth surface. Poor lubrication can lead to increased tooth wear and even damage to the entire equipment.


2. Requirement for alignment: After the coupling is assembled on the shaft, the perpendicularity and coaxiality between the coupling and the shaft should be carefully checked. This is usually achieved by setting a dial gauge on the end face and outer circle of the coupling, and observing the full runout value of the coupling when turning the shaft to determine its alignment.


3. Assembly requirements: The correct installation of the key is also one of the key factors to ensure the alignment of the coupling. The key should ensure a tight fit between the two sides and the keyway wall. If the fit is not good, it needs to be repaired.

It is worth noting that different models of drum toothed couplings may have different alignment range requirements. For example, the GCLD drum toothed coupling allows for a certain amount of axial and radial displacement compensation to accommodate small displacements of the equipment during operation. The NL type nylon inner ring crown gear coupling has greater radial displacement compensation and angular compensation capabilities, and is suitable for medium and small torque working conditions.
