Alignment Of Concentricity For Drum Gear Couplings

The concentricity alignment of drum gear couplings is a delicate task that requires strict adherence to the operating procedures. By precise measurement and adjustment, the concentricity of the coupling can be ensured to meet the requirements, thereby improving the operational efficiency and stability of mechanical equipment. During the operation, key elements such as safety, temperature control, measurement accuracy, and adjustment sequence should be taken into account to ensure the quality of concentricity alignment.

The concentricity alignment of crown gear couplings is a key step in ensuring the normal operation of mechanical equipment, reducing vibration and noise, and extending service life.

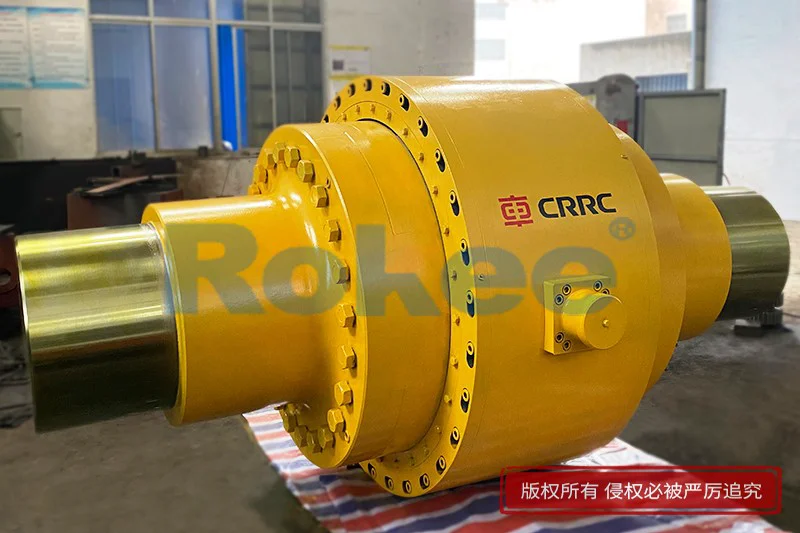

Drum gear couplings have the characteristics of small size, high torque transmission, strong ability to absorb connection errors, and excellent durability. The drum shaped tooth surface design improves the contact conditions between the inner and outer teeth, avoiding the drawbacks of edge compression and stress concentration at the straight tooth end, while reducing noise and extending the maintenance cycle.

Steps for aligning concentricity

1. Preliminary preparation:
   Check whether the dimensions, accuracy, etc. of the coupling and connected components meet the requirements.
   Clean the oil stains, burrs, etc. on the surface of the shaft to ensure a smooth and clean surface.


2. Install the external gear shaft sleeve:
   Heat the outer gear shaft sleeve to a suitable temperature (usually around 200 ℃), and then quickly fit it onto the corresponding shaft to achieve a tight fit.
   Pay attention to the heating temperature and time to avoid affecting the performance of the shaft.


3. Preliminary alignment of the coupling:
   Install the external gear shaft sleeve on the output shaft and power end crankshaft of the reducer respectively.
   Based on the power end, move the gearbox assembly for preliminary alignment.


4. Accurate measurement and adjustment:
   Measure the radial and axial clearances of the coupling using tools such as a dial gauge, ruler, and feeler gauge.
   According to the measurement results, the position of the coupling is precisely adjusted using tools such as jacks and inclined irons to achieve the required concentricity.
   Pay attention to ensuring that the tool is firmly and reliably fixed during measurement, and that the bracket has sufficient rigidity.


5. Tightening and inspection:
   After adjustment, use a torque wrench to evenly tighten the connecting bolts.
   Check the engagement of the coupling to ensure there are no abnormal sounds or vibrations.

Precautions

1. Heating temperature control: When installing the external gear shaft sleeve, the heating temperature should be moderate to avoid affecting the assembly quality if it is too high or too low.


2. Measurement accuracy: Use high-precision measuring tools for concentricity measurement to ensure the accuracy of the measurement results.


3. Adjustment sequence: Generally, adjust the axial deviation first to make the end faces of the two halves of the coupling parallel; Adjust the radial deviation again to make the two halves of the coupling concentric.


4. Safety protection: During the disassembly and installation process, safety protection measures should be taken to avoid accidents.
