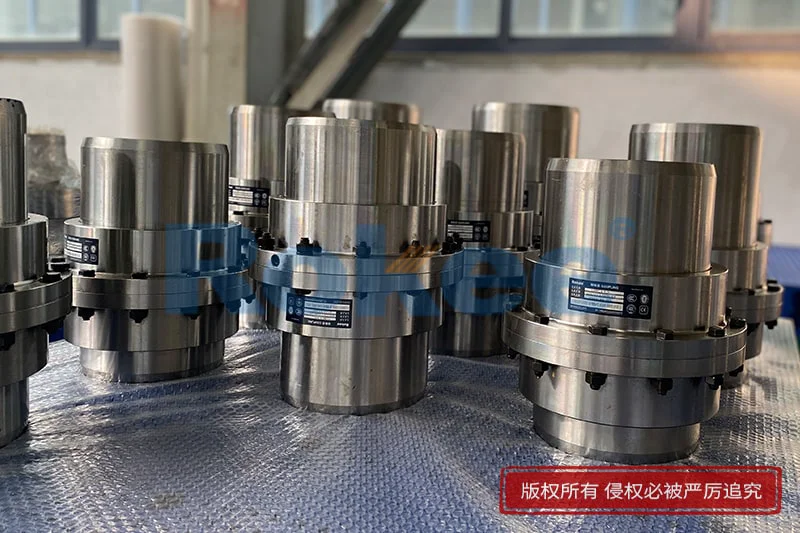

Customized Drum Gear Coupling

In the field of mechanical transmission, couplings are important components that connect two shafts or shafts with rotating parts, and their performance and stability directly affect the operational efficiency and safety of the entire transmission system. Among various types of couplings, drum toothed couplings have become the preferred choice for many industrial applications due to their unique structural design and excellent transmission performance. And customized drum gear couplings are precisely designed according to specific needs, meeting more diverse transmission requirements.

The drum gear coupling is named after its drum shaped design of inner and outer teeth, which enables the coupling to effectively compensate for the relative displacement between the two shafts, including axial, radial, and angular displacement, while transmitting torque. In addition, the contact area of the drum shaped teeth is large, and the pressure distribution on the tooth surface is uniform, thereby improving the bearing capacity of the coupling and extending its service life. Its unique lubrication groove design ensures good lubrication effect, further improving transmission efficiency and stability.

The advantages of custom drum gear couplings

1. Accurate matching requirements: Customized drum toothed couplings can be designed and manufactured with precision according to specific customer needs, such as torque transmission size, shaft diameter size, displacement compensation capability, etc. This personalized customization ensures a perfect match between the coupling and the transmission system, enhancing overall performance.


2. Optimizing transmission efficiency: Through precise tooth profile design and material selection, customized couplings can ensure strength while minimizing energy loss during transmission and improving transmission efficiency.


3. Enhance stability and durability: Customized couplings can adopt reinforcement design to address adverse factors such as vibration and impact under specific working conditions, such as increasing tooth surface hardness and optimizing lubrication systems, in order to enhance the stability and durability of the coupling.


4. Adapting to diverse applications: Whether in the fields of heavy machinery, aerospace, or precision instruments, customized drum gear couplings can meet diverse application needs with their flexible design and excellent performance.

Design process of customized drum tooth coupling

1. Requirement analysis: Conduct in-depth communication with customers to clarify the specific requirements of the transmission system, including torque size, shaft diameter size, displacement compensation range, working environment, etc.


2. Preliminary design: Based on the results of the requirements analysis, carry out the preliminary design of the coupling, including gear selection, material determination, structural layout, etc.


3. Simulation analysis: Using advanced simulation software, perform mechanical analysis and dynamic simulation on the preliminary design to evaluate the performance and stability of the coupling.


4. Optimization and adjustment: Based on the simulation analysis results, optimize and adjust the design to ensure that the coupling meets all performance indicators.


5. Manufacturing and testing: Manufacturing is carried out according to the optimized design, and strict quality inspection and performance testing are carried out on the finished product to ensure that the quality and performance of the coupling meet customer requirements.

Customized crown gear couplings have shown broad application prospects in the field of mechanical transmission due to their unique advantages of precise matching requirements, optimized transmission efficiency, enhanced stability and durability. With the continuous development of technology and the upgrading of industry, customized couplings will pay more attention to intelligent, modular, and green design to meet the higher-level needs of future industries for transmission systems.
