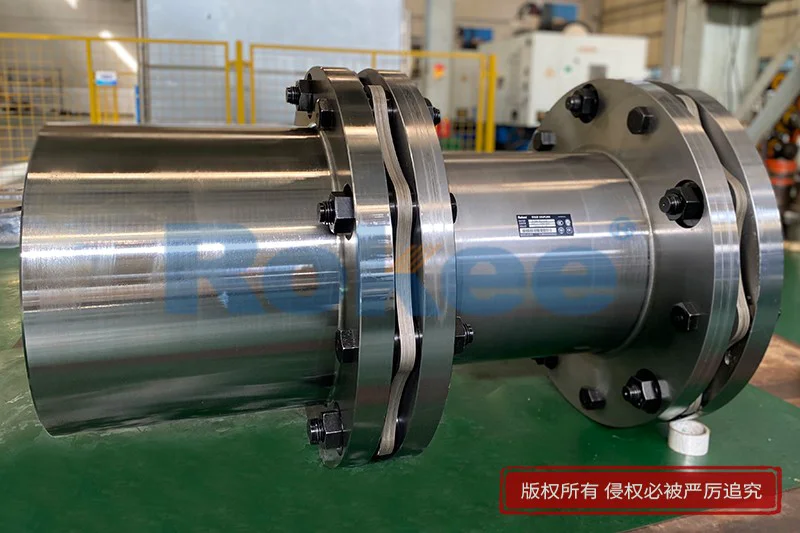

Installation Direction Of Diaphragm Coupling Diaphragm

The diaphragm of the diaphragm coupling itself does not have specific installation direction requirements. This means that the diaphragm can rotate or flip freely, as long as it can correctly correspond to other parts of the coupling.

Although the membrane itself does not have directional requirements, the rivets and their caps on the membrane have directionality. During installation, special attention should be paid to the direction of the rivet caps to ensure that they are installed according to the factory settings. If the rivet cap is installed in the wrong direction, it may affect the performance of the diaphragm coupling and even cause damage.

The bolt of the diaphragm coupling is a key component for connecting and fixing the diaphragm, and its installation direction is crucial. When installing bolts, it is necessary to ensure that the bolts are inserted from the outside of the flange hole and then into the diaphragm hole, and pay attention to the direction of the diaphragm. At the same time, the degree of tightening of the bolts also needs to be appropriate. Over tightening or over loosening may lead to a decrease in the performance or damage of the diaphragm coupling.

Installation precautions

• Before installation, the concentricity of the two shafts at both ends of the transmission and the surface condition of the inner holes of the two shafts and the half coupling of the coupling should be checked to ensure that there are no debris or bumps.


• During the installation process, it is important to ensure the cleanliness of components such as the diaphragm and bolts, and to avoid damaging the mating surfaces of the diaphragm and bolts.


• After installation, inspection and debugging should be carried out to ensure that the performance of the diaphragm coupling meets the design requirements.

Although there are no strict requirements for the installation direction of the diaphragm coupling diaphragm, attention should be paid to the direction of the rivet cap and the correct installation of the bolts. During the installation process, the operating procedures and precautions should be strictly followed to ensure the performance and safety of the diaphragm coupling.
