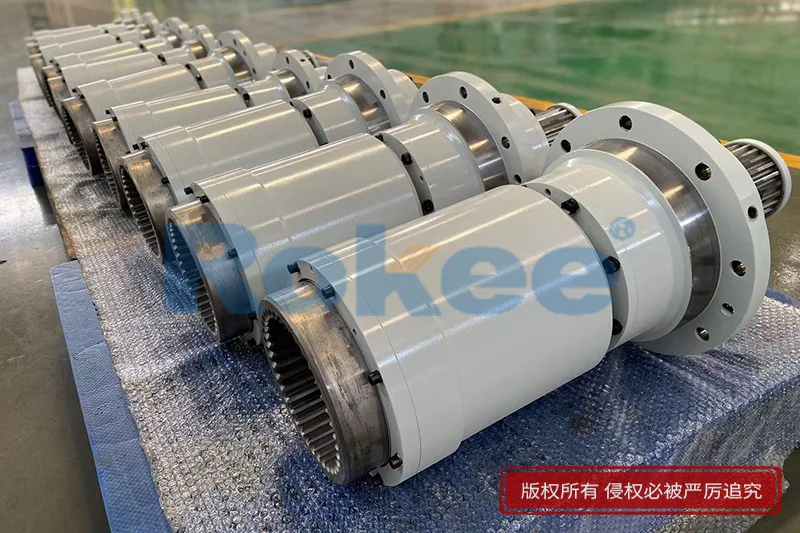

Angle Of Drum Gear Coupling

The drum gear coupling has the characteristics of large angular displacement compensation ability, optimized drum shaped gear surface design, and strong angular adaptability in terms of angle. These characteristics enable the drum gear coupling to maintain good transmission performance and service life under various complex working conditions.

The angular characteristics of drum gear couplings are mainly reflected in their ability to compensate for angular displacement. The following is a detailed analysis of the angular characteristics of drum gear couplings:

1. Large angular displacement compensation amount
   Compared to spur gear couplings, drum tooth couplings have greater angular displacement compensation capabilities. When the radial displacement is equal to zero, the allowable angular displacement of the spur gear coupling is relatively small, while the allowable angular displacement of the drum gear coupling is larger, usually increasing by about 50%. This characteristic enables the drum gear coupling to maintain good transmission performance even when there is a large deviation angle in the axis.


2. Drum shaped tooth surface design
   The outer gear sleeve of the drum gear coupling adopts a drum shaped design, and the tooth thickness gradually decreases from the center to both sides. This design improves the contact conditions between the inner and outer teeth of the coupling under angular displacement conditions, avoiding the drawbacks of edge compression and stress concentration at the straight tooth end. At the same time, the drum shaped tooth surface can improve the friction and wear of the tooth surface, reduce noise, and extend the service life.


3. Strong adaptability to different angles
   drum toothed couplings, due to their large angular displacement compensation capability, can adapt to angle changes under various complex working conditions. Whether in heavy industries such as metallurgy, mining, lifting and transportation, or in shaft transmission of various types of machinery such as petroleum, chemical, and general machinery, drum gear couplings can demonstrate their excellent angular adaptability.


4. Angle adjustment and maintenance
   Although crown gear couplings have significant angular displacement compensation capabilities, it is still necessary to pay attention to angle adjustment and maintenance during actual use. During installation, it should be ensured that the axes of the two shafts coincide as much as possible to reduce the occurrence of angular displacement. At the same time, regular inspection of the wear of the coupling and timely replacement of severely worn components are also important measures to maintain good transmission performance of the coupling.
