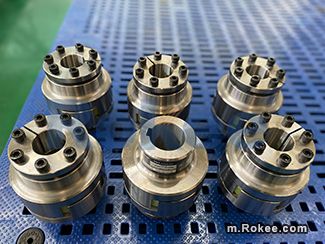

Plum Couplings
Rokee is a chinese Plum Couplings Manufacturer, provide Plum Couplings processing and customization services, Over the years, with excellent quality, we have been continuously providing many coupling products of various categories and uses complying with multiple standards and a full range of services, from the Plum Couplings selection to final installation and operation, for the industry fields of ferrous metallurgy, nuclear power, gas turbine, wind power, ropeway construction, lifting transportation, general equipment, etc. We strictly comply with quality system requirements and implement the whole process control to become a reliable and trustworthy partner of customers.
Providing customers with better Plum Couplings is always our driving force. Our aim is to transmit power for you and generate value for both of us. We look forward to joining you and becoming your partner for common progress.
-
![LM Plum Couplings,LM/ML Flexible Plum Jaw Coupling]()
LM/ML Flexible Plum Jaw Coupling
LM Plum-shaped Flexible Coupling is the basic form of this series of couplings.View More -
![LMD Plum Couplings,LMD/MLZ Flexible Plum Jaw Coupling With Single Flange]()
LMD/MLZ Flexible Plum Jaw Coupling With Single Flange
LMD Plum-shaped Flexible Coupling is added with transition connection, which eliminates the need of axially moving the semi-coupling when replacing the elastomer.View More -
![LMS Plum Couplings,LMS/MLS Flexible Plum Jaw Coupling With Double Flange]()
LMS/MLS Flexible Plum Jaw Coupling With Double Flange
LMS Plum-shaped Flexible Coupling adopts double transition flange connection, which eliminates the need of axially moving the semi-coupling when replacing the elastomer.View More -
![LMZ-I Plum Couplings,LMZ-I/MLL-I Flexible Plum Jaw Coupling With Split Brake Wheel]()
LMZ-I/MLL-I Flexible Plum Jaw Coupling With Split Brake Wheel
LMZ-I Plum-shaped Flexible Coupling adopts split brake wheel design, suitable for situations where braking is required.View More -
![LMZ-II Plum Couplings,LMZ-II/MLL-II Flexible Plum Jaw Coupling With Integral Brake Wheel]()
LMZ-II/MLL-II Flexible Plum Jaw Coupling With Integral Brake Wheel
LMZ- II Plum-shaped Flexible Coupling adopts integral brake wheel design, suitable for situations where braking is required.View More -
![LMPK Plum Couplings,LMPK/MLPK Flexible Plum Jaw Coupling With Split Brake Disc]()
LMPK/MLPK Flexible Plum Jaw Coupling With Split Brake Disc
LMPK Plum-shaped Flexible Coupling adopts split brake disc design, suitable for situations where braking is required and eliminating the need of axially moving the semi-coupling when replacing the elastomer.View More
The plum coupling consists of two metal claw plates (usually 45 steel or aluminum alloy) and an elastic body (polyurethane or rubber). The core principle is to transmit torque through the compression deformation of elastic elements, while compensating for axial, radial, and angular deviations (within ± 1.5mm and ± 5 °). The elastomer adopts a plum blossom petal design (commonly 4/6/8/10 petals), achieving seamless transmission under compression, with a maximum speed of up to 30000 r/min.
Performance Characteristics
Dynamic compensation capability
Elasticity can absorb vibration energy and reduce system torsional stress by up to 30%, especially suitable for frequent start stop or forward/reverse scenarios (such as servo motors).
The working temperature range is wide (-35 ℃ to+80 ℃), and the polyurethane elastomer is oil resistant and insulated, suitable for harsh environments such as chemical and metallurgical industries.Structural advantages
Compact design: The radial size is 40% smaller than that of gear couplings, with low rotational inertia, suitable for high-speed applications (such as CNC machine tool spindles).
Maintenance free design: No lubrication required, with a maintenance cycle of up to 10 years (depending on the lifespan of the elastomer).Failure protection mechanism
When the elastic body is damaged, the metal claw plate can still temporarily engage and transmit torque, but it will trigger a system alarm to avoid sudden shutdown.
