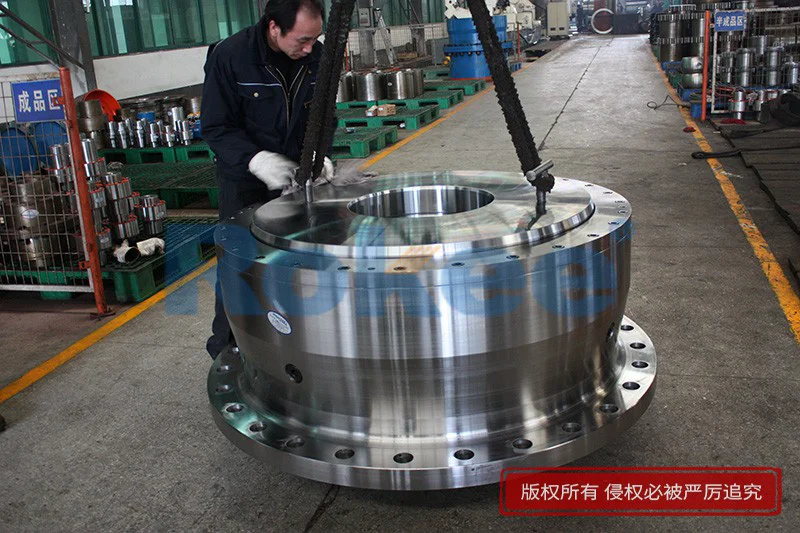

Displacement Of Drum Gear Coupling

Drum gear couplings have excellent displacement compensation capabilities, which can compensate for axis deviations in multiple directions, ensuring smooth and reliable transmission. This characteristic makes the drum toothed coupling an ideal choice among various transmission systems.

Drum gear couplings perform well in displacement compensation, with the ability to compensate for axial, radial, and angular deviations.

1. Radial displacement compensation
   Drum toothed couplings allow for significant radial displacement. Its structural characteristics result in a certain gap between the inner and outer gear rings. When there is a radial deviation between the two shafts, the coupling can compensate through these gaps to ensure the smoothness and reliability of the transmission. This radial displacement compensation capability makes the drum toothed coupling particularly suitable for transmission systems with radial displacement deviations.


2. Axial displacement compensation
   Drum tooth couplings also have the ability to compensate for axial displacement. When there is axial deviation between the two shafts, the coupling can compensate for it through its unique structure, thereby avoiding impact and vibration during the transmission process. This axial displacement compensation capability helps to extend the service life of the transmission system and improve the stability of the transmission.


3. Angular displacement compensation
   Compared to spur gear couplings, drum gear couplings exhibit greater advantages in angular displacement compensation. The design of drum shaped teeth enables the coupling to maintain a better contact state during angular displacement, thereby improving the ability to transmit torque and extending its service life. In addition, the angular displacement compensation capability of the drum gear coupling enables it to adapt to more complex and variable transmission environments.


4. Application of displacement compensation capability
   The displacement compensation capability of drum gear couplings has enabled them to be widely used in multiple fields. For example, in heavy industries such as metallurgy, mining, and lifting transportation, crown gear couplings can withstand torque transmission tasks under low-speed heavy load conditions and effectively compensate for displacement deviations in all directions. In addition, drum gear couplings also play an important role in shaft transmission in industries such as petroleum, chemical, and general machinery.
