Rokee® Customized JS GRID COUPING for Customers, Rokee® is a well-known high-quality supplier of couplings and technical services in China.

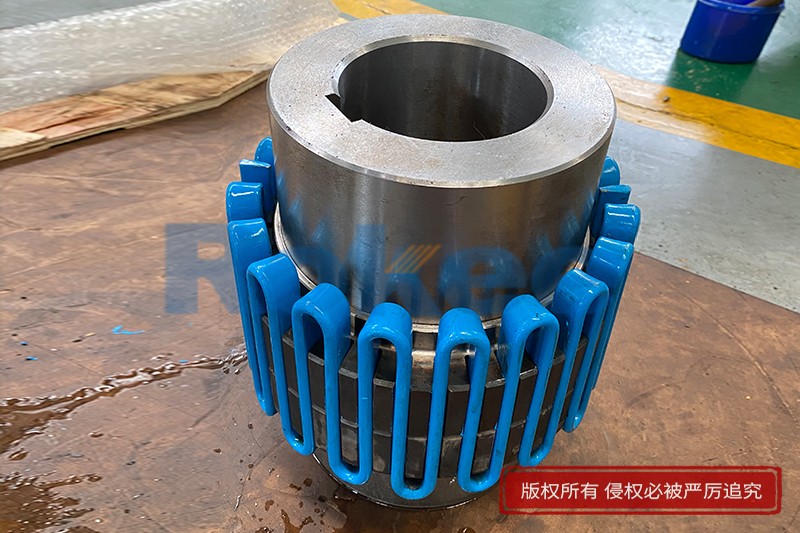

The JS GRID COUPING mainly consists of two half couplings, a set of snake shaped springs, and intermediate components such as diaphragms and sleeves. Among them, the snake shaped spring is the core component of the coupling, which is made of high-strength and highly elastic alloy material, and has excellent fatigue resistance and wear resistance. The design of the serpentine spring enables the coupling to effectively absorb and compensate for radial, axial, and angular deviations between the shaft systems while transmitting torque, thereby ensuring the smooth operation of the equipment.
When two half couplings are connected together by a serpentine spring, the elastic deformation ability of the spring enables the coupling to adapt to small deviations between the shaft systems. During the process of transmitting torque, the serpentine spring undergoes elastic deformation, transferring torque from the driving shaft to the driven shaft. At the same time, the elastic restoring force of the spring can automatically adjust the deviation between the shaft systems, maintain the coaxiality of the shaft systems, thereby reducing vibration and noise, and improving the operating efficiency and service life of the equipment.
Performance characteristics of JS GRID COUPING
High elasticity and high fatigue resistance: The snake shaped spring is made of high-strength alloy material, which has excellent elasticity and fatigue resistance, and can withstand large torque and impact loads.
Good compensation capability: Couplings can automatically compensate for radial, axial, and angular deviations between shaft systems, adapting to various complex working conditions.
Vibration and noise reduction: The elastic deformation of the serpentine spring can absorb and disperse vibration energy, effectively reducing vibration and noise during equipment operation.
Simple structure and easy installation: The coupling structure is designed reasonably, easy to install and maintain, and reduces the maintenance cost of the equipment.
Wide applicability: JS GRID COUPINGs are suitable for various transmission systems, such as fans, water pumps, compressors, reducers, etc., and are widely used in industries such as petroleum, chemical, power, metallurgy, etc.
In the petroleum industry, JS GRID COUPINGs are widely used in key parts such as drilling equipment, oil production equipment, and pipelines. Due to the harsh working environment in the petroleum industry, equipment needs to withstand extreme conditions such as high temperature, high pressure, and strong corrosion, so the performance requirements for couplings are extremely high. The JS GRID COUPING, with its excellent fatigue resistance, compensation capability, and corrosion resistance, has successfully met the needs of the petroleum industry and ensured the stable operation of the equipment.
In the power industry, JS GRID COUPINGs are used in the transmission systems of electrical equipment such as generators, motors, and transformers. These devices require long-term continuous operation, which places high demands on the reliability and durability of the coupling. The JS GRID COUPING ensures the smooth operation of electrical equipment and improves the stability and reliability of power supply through its excellent performance.
JS GRID COUPINGs play an increasingly important role in modern industrial fields due to their unique structural design and excellent performance. With the continuous advancement of industrial technology and changes in market demand, JS snake spring couplings will continue to innovate and improve, providing more reliable support for the smooth operation and efficient transmission of industrial equipment.
Over the years, with excellent quality, we have been continuously providing many coupling products of various categories and uses complying with multiple standards and a full range of services, from the product selection to final installation and operation, for the industry fields of ferrous metallurgy, nuclear power, gas turbine, wind power, ropeway construction, lifting transportation, general equipment, etc. We strictly comply with quality system requirements and implement the whole process control to become a reliable and trustworthy partner of customers.
